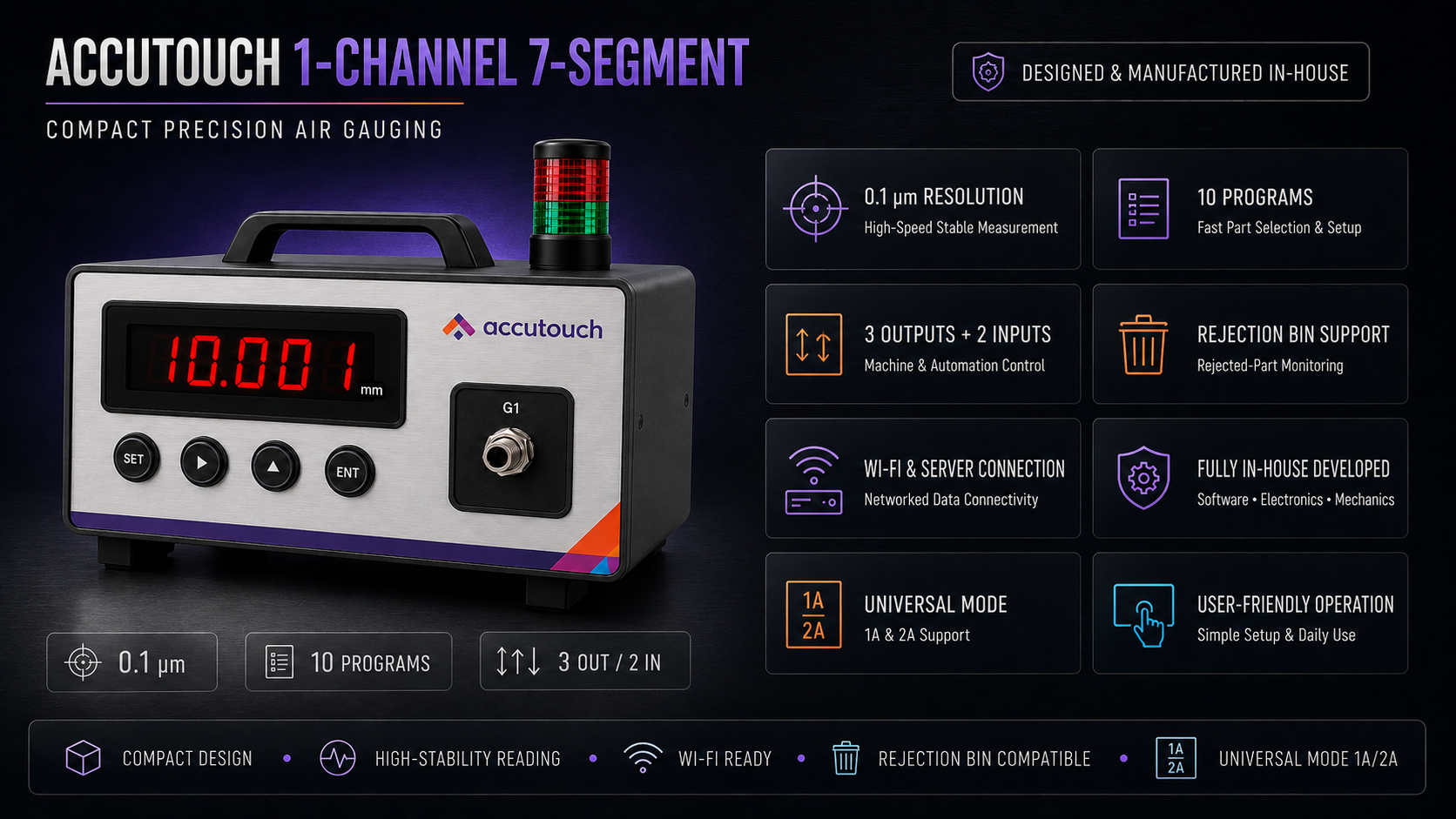

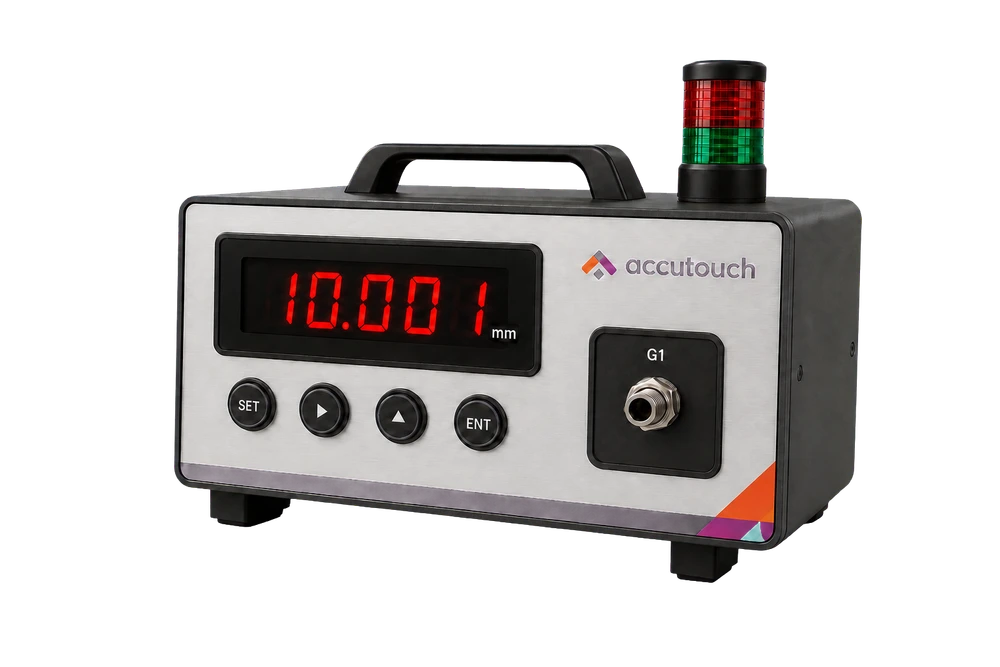

A1 (1-Channel 7-Segment)
Compact precision air gauging for stable, straightforward shop-floor measurement.
Air gauging systems for zero-defect manufacturing
AccuTouch is a Pune-based air gauge manufacturer and gauging-system integrator for digital air gauges, multi-channel measurement, real-time SPC software, customized fixtures and CNC process correction.
- Hardware
- Air and probe measurement
- Software
- SPC and traceability
- Automation
- Machine connectivity
ACCT · SERIES 2.2 / 4.42–4 CHANNELS
MeasurementAcquire data
SPCAnalyse variation
CorrectionConnect action
In-house software, electronics and mechanics*Air + LVDT compatible*SPC and connectivity options**Catalogue-supported product features
Three catalogue-supported starting points
Choose a compact display, connected touchscreen or multi-channel automation platform. Published specifications below come from the supplied product sheets.

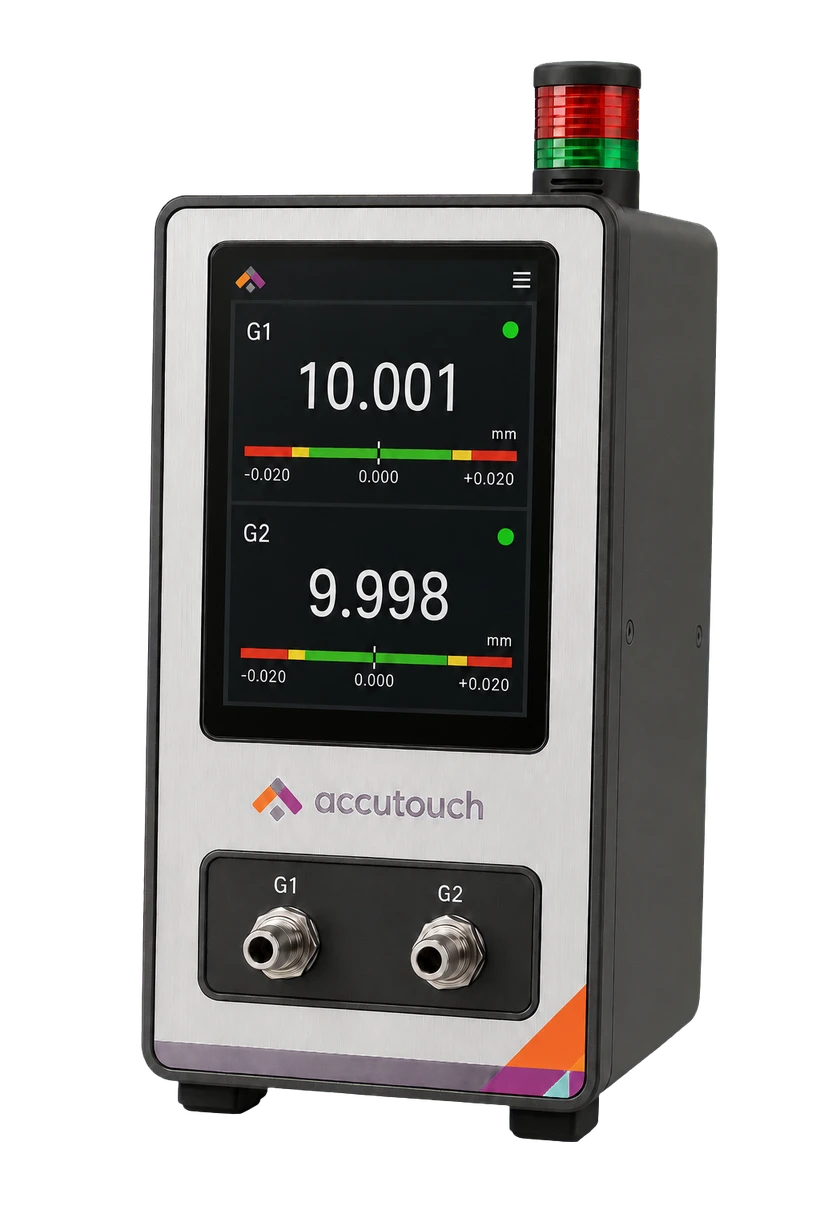

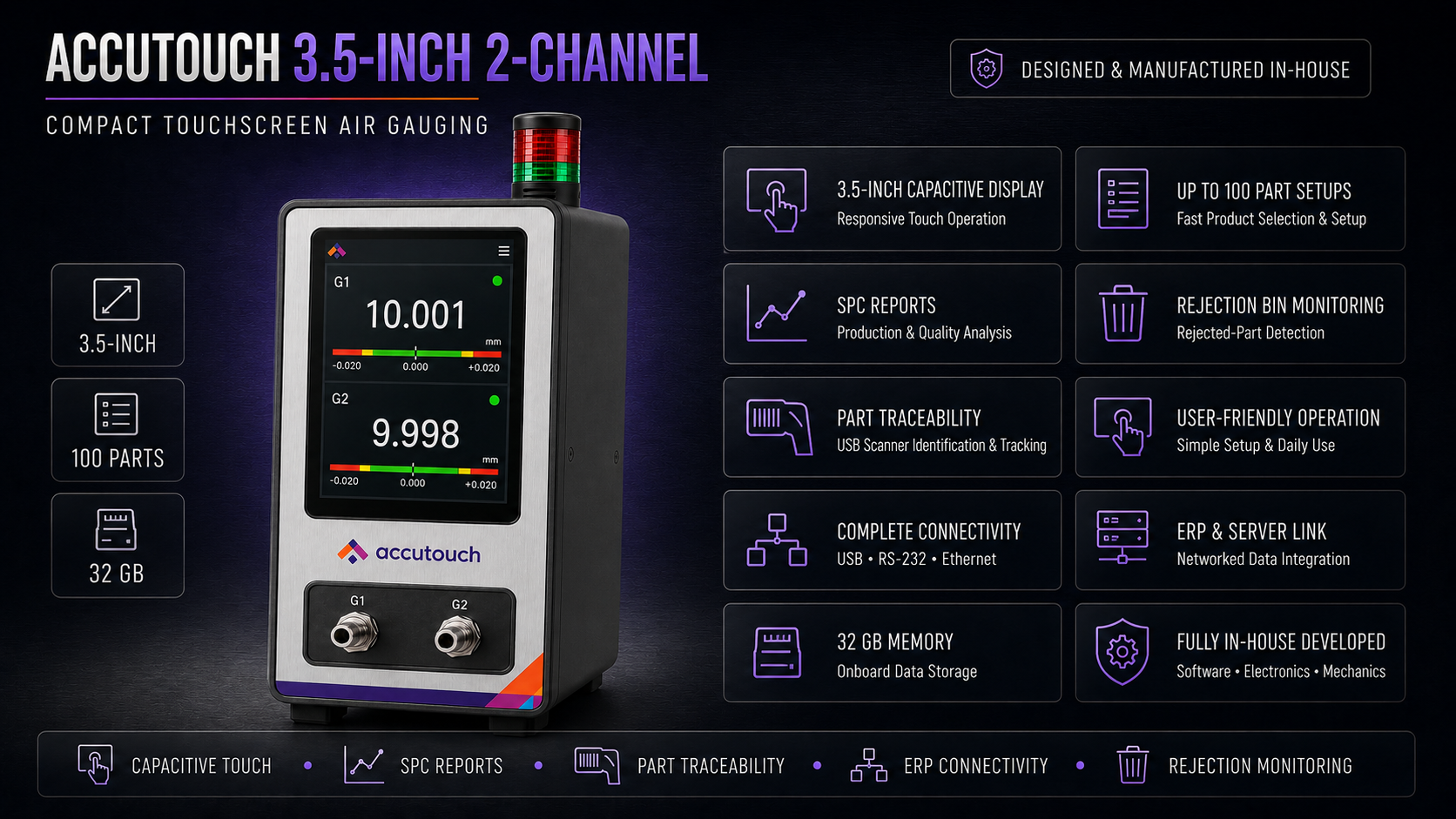

A2 (3.5-inch Touchscreen)
Compact dual-channel touchscreen gauging with traceability, reporting and network connectivity.

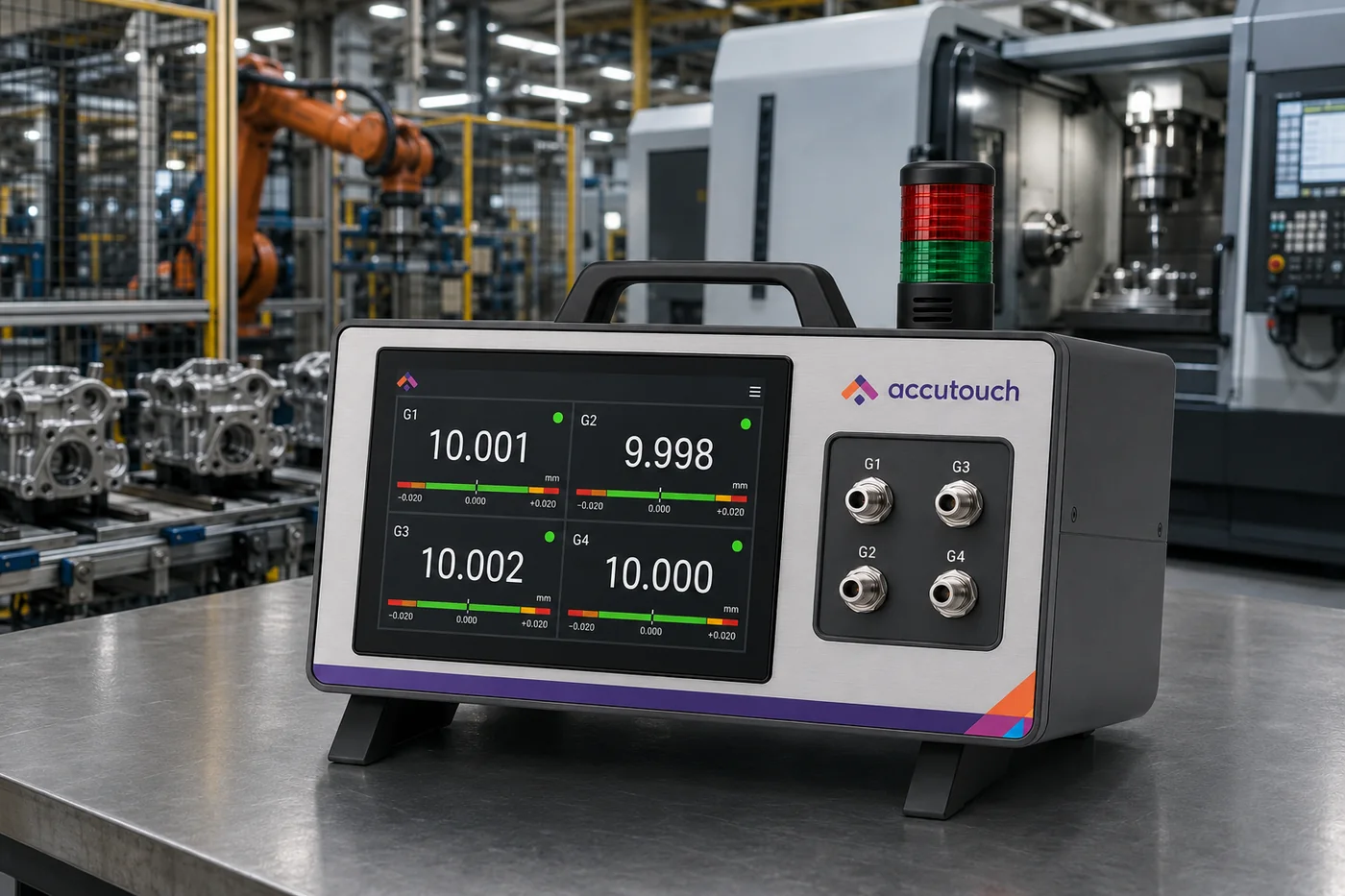

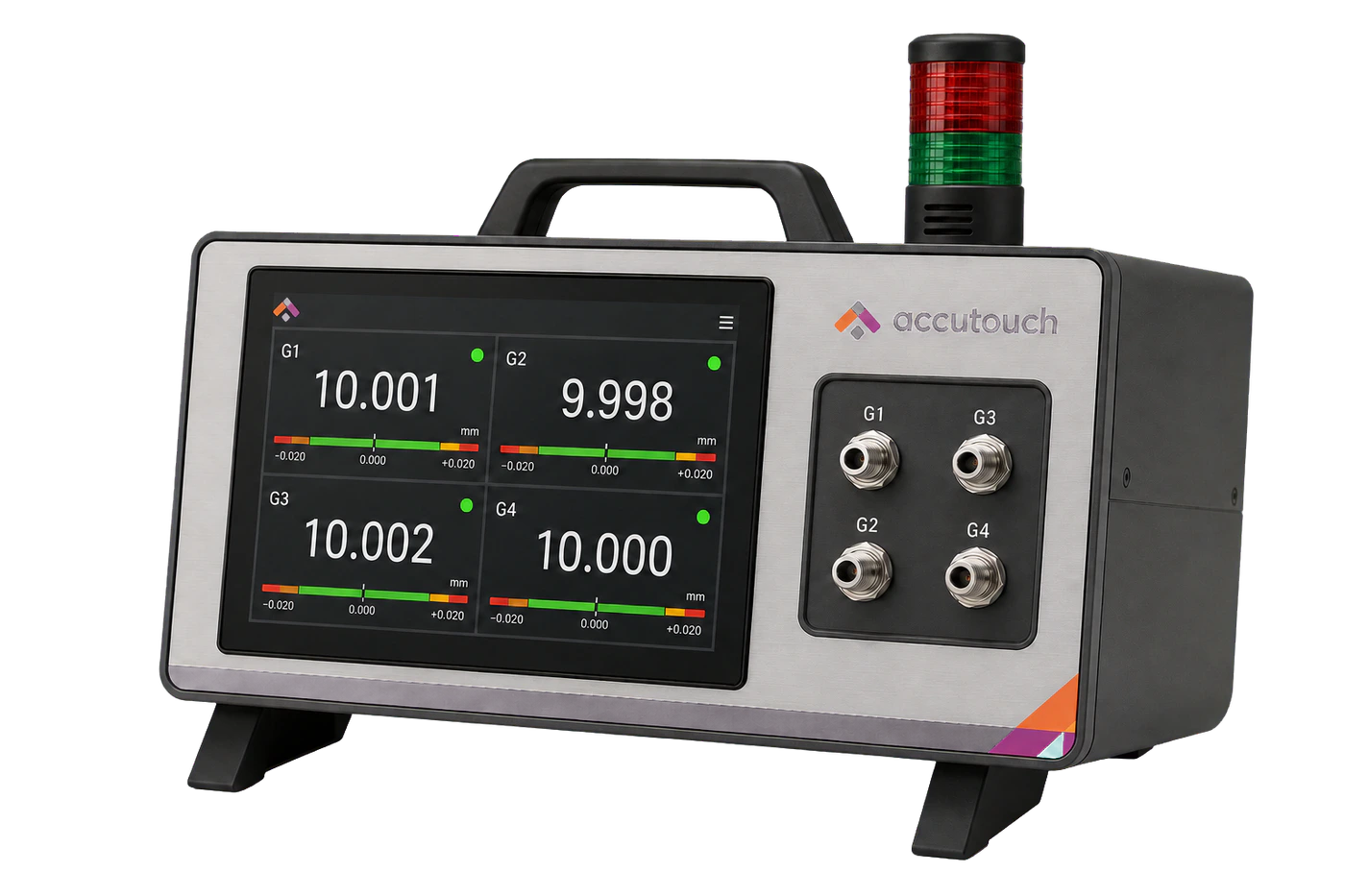

AccuTouch Series (7-inch Touchscreen Instrument)
Smart multi-channel air gauging for SPC, traceability and closed-loop CNC automation.
Find the right gauging system
Choose the measurement need and desired integration. The selector recommends the closest supported starting point; final suitability requires an application review.

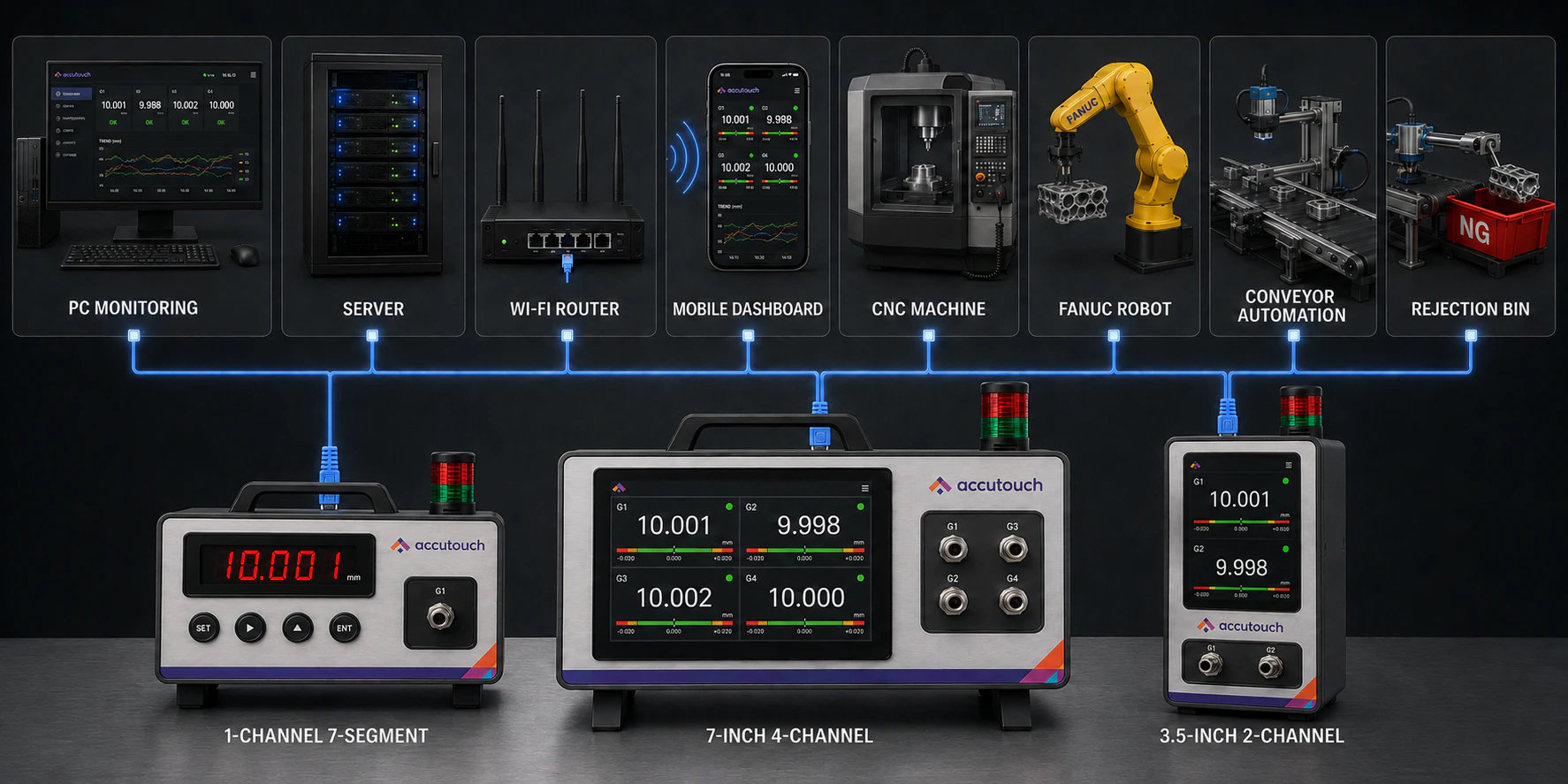

One measurement platform, connected to the wider process
Explore an illustrative architecture linking AccuTouch instruments with data, monitoring and automation endpoints. Select a connection to see what must be configured.
Selected connection
PC monitoring
Review measurement and SPC information at a workstation when the selected software and connection are configured.
Illustrative architecture only. Available interfaces, software, control logic and network responsibilities vary by product and application and require engineering confirmation.
One signal path, from part to process
AccuTouch systems can combine measurement hardware, SPC workflows and automation interfaces. Configuration depends on the application and machine environment.
Capture the feature
Air gauging and probe-compatible configurations convert component variation into operator-ready results.
See process behaviour
Traceability, reports and connected data give production and quality teams usable context.
Close the loop
PLC, robot, rejection and CNC AutoOffset options connect inspection with downstream action.
See variation before it becomes scrap
Explore a synthetic SPC preview that demonstrates the information structure only. It is not production data or a performance claim.
ILLUSTRATIVE DATABORE A · mm
10.001 Latest10.000 NominalIN TOL Status
CNC AutoOffset turns a measurement into controlled correction

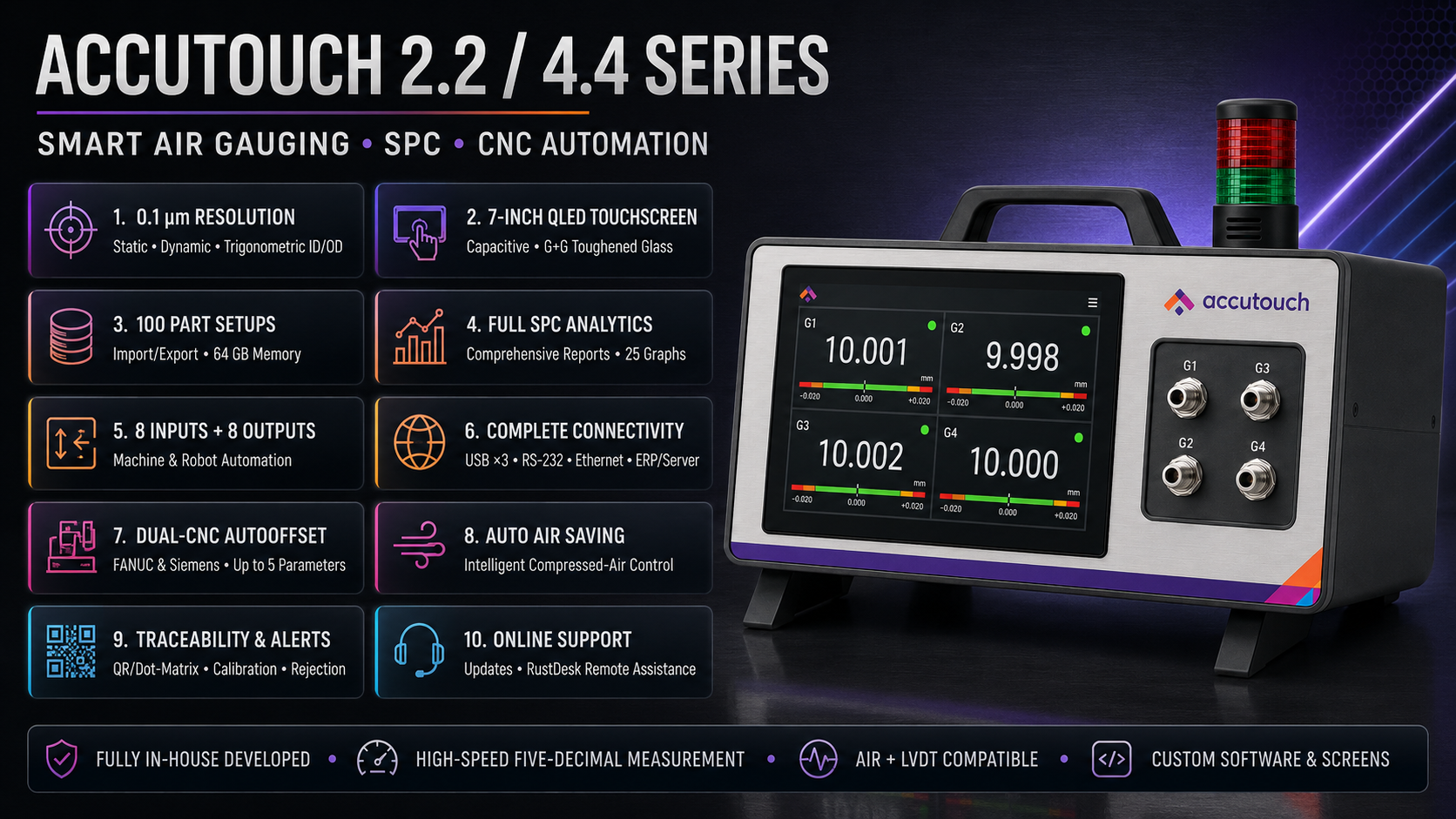

The 7-inch series catalogue identifies dual-CNC AutoOffset support for FANUC and Siemens with up to five parameters. Final correction logic, limits, permissions and machine responsibilities must be engineered for the application.
Plan a machine interface- MeasureCapture the configured feature after machining.
- EvaluateApply the approved tolerance and correction strategy.
- CommunicateSend a bounded correction through the configured interface.
- VerifyMeasure the next part and maintain traceability.
Start from the component, not the catalogue
Browse common measurement needs, then share the real drawing and process constraints for selection.
A fixture begins with the real component
Send the drawing, tolerance, production process and handling requirement. AccuTouch can review air, probe, multi-gauging and automation approaches.
Technical literature
Download the actual one-page product sheets supplied for this website.
Developed across disciplines
The supplied catalogues identify in-house software, electronics and mechanical development. That coordinated scope helps the instrument, data and automation interfaces work as one system.
In-house developmentSupport beyond selection
Product selection, installation planning, connectivity review, updates and configuration-dependent remote assistance keep the conversation connected to the real process.
Technical supportBring measurement, SPC and correction into one conversation.
Call the AccuTouch engineering team or prepare a structured requirement online.
