Multi-channel gauging system with SPC and CNC AutoOffset
Smart multi-channel air gauging for SPC, traceability and closed-loop CNC automation.
Download actual product sheet
Main features
- Static, dynamic and trigonometric ID/OD modes
- Dual-CNC AutoOffset for FANUC and Siemens; up to 5 parameters
- Automatic air saving
- QR/Dot-Matrix traceability and alerts
- Online updates and RustDesk remote assistance
- Air + LVDT compatible
- Custom software and screens
Applications
Verified specifications
| Channel configuration | 2 or 4 channels |
|---|---|
| Display | 7-inch OLED capacitive touchscreen with G+G toughened glass |
| Resolution | 0.1 µm |
| Programs / part setups | 100 part setups |
| Storage | 64 GB |
| SPC | Full SPC analytics with 25 graphs |
| Inputs / outputs | 8 inputs + 8 outputs |
| Connectivity | 3 × USB · RS-232 · Ethernet · ERP/server |
Only information visible in the supplied catalogue is published. Accuracy, operating conditions, dimensions and power requirements require confirmation.

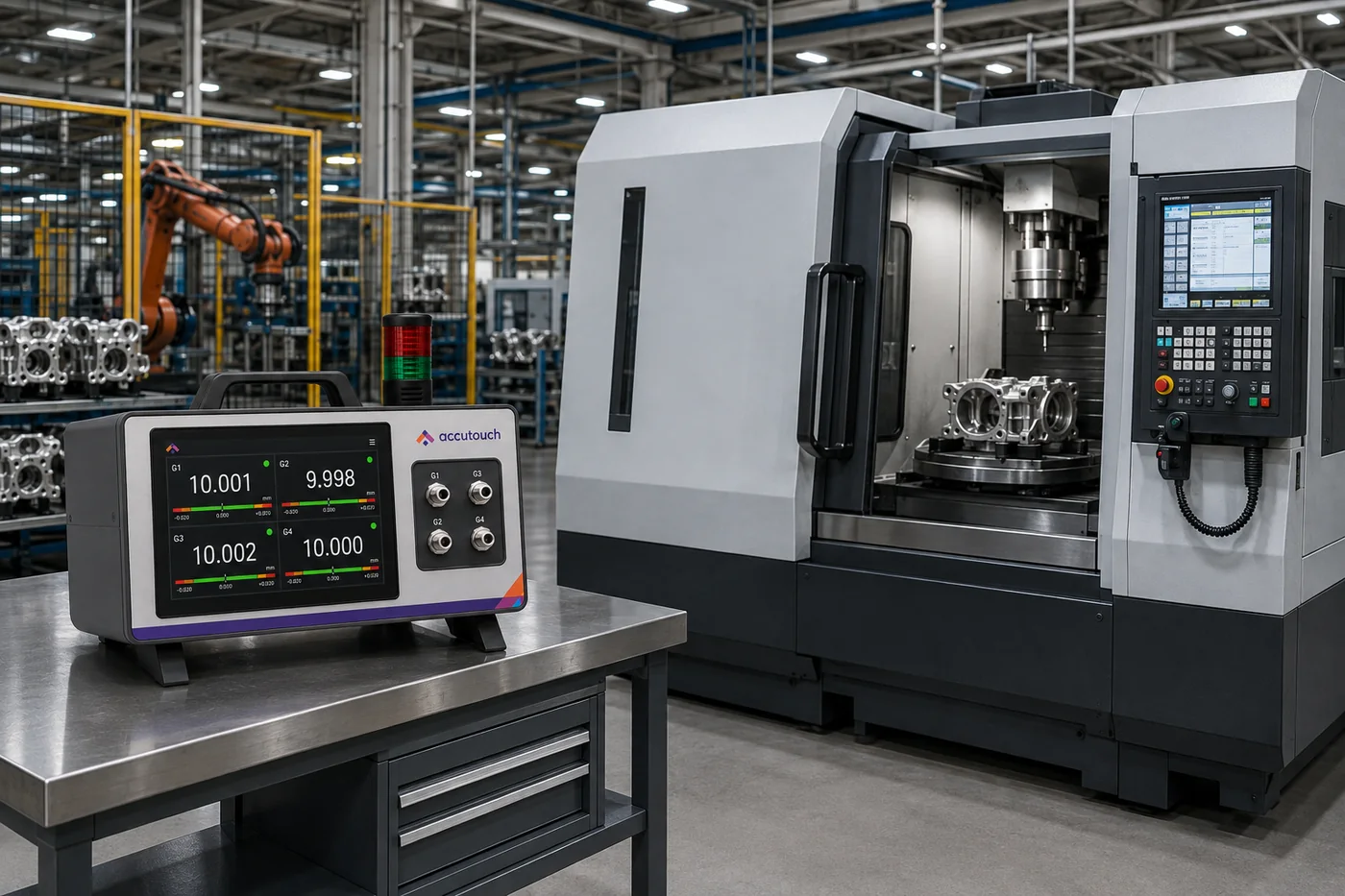

Application gallery
Application scenes are illustrative reference imagery; final integration depends on the machine and process.
Included
- Configured gauging instrument
Configuration options
- CNC AutoOffset interface
- PLC/robot integration
- Air or LVDT probes
- Remote support setup
Frequently asked questions
Is this unit suitable for my component?
Suitability depends on the feature, tolerance, gauging tooling, production environment and required outputs. Share the drawing for review.
Can the unit connect to a machine or server?
The supplied catalogue lists 3 × USB, RS-232, Ethernet, ERP/server. Exact protocols and integration scope require confirmation.
Can I buy it online?
Public prices and payment credentials are not configured. AccuTouch will confirm price, GST, configuration and delivery through a written quotation.
